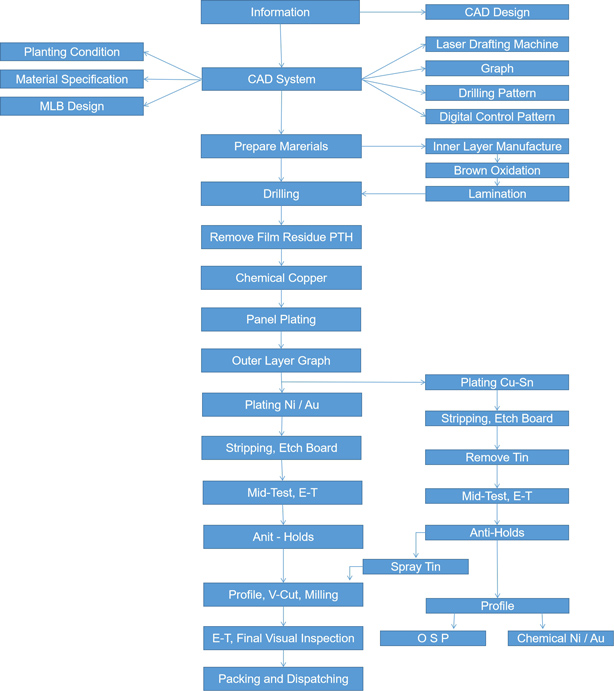

Flow Diagram

PCB circuit boards are constantly changing with the advancement of process technology, but in principle, a complete PCB circuit board needs to pass through the printed circuit board, to the cutting circuit board, to process the copper clad board, to transfer the circuit board, Corrosion, drilling, pre-treatment, and welding can only be energized after these production processes. The following is a concise flow diagram of the PCB board production process.
